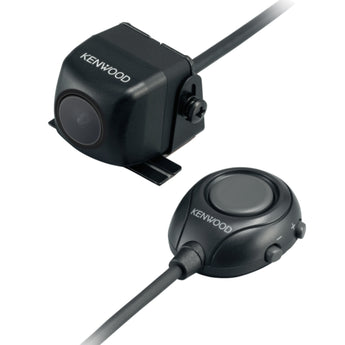

Kenwood CMOS-320 Multi View Reversing Camera Universal DMX DDX DNX Car Stereos
CMOS-320
Universal Multi View Camera
Don't miss a thing in reverse.
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles including super wide view, overhead view, PinP view, corner view and adding graphic guidelines to the camera image. The sensitive CMOS sensor in combination with the high-quality lens provide a good, sharp image, even at night or dark places like a parking garage. Easily switch between the many viewing options using the touch screen from a compatible KENWOOD AV-receiver.
- Universal Multi View Camera
- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Can be installed on the front or rear side of the car
IP67
Pioneer products that show the IP67 rating are dust and water resistant, offering protection against dust ingress and protection against short periods of immersion in water. (Maximum 30 minutes at 1 metre depth).
Specification
Part Number: CMOS-320
- Universal Multi View Camera
- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Can be installed on the front or rear side of the car
- Camera Type 1/3.6" colour CMOS sensor
- Colour type Yes
- Effective number of pixels roughly 330000
- High sensitivity Pixels Yes
- Output video Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View
- Waterproof chassis Yes
- Mounting system Fexible mount base
- Installation positions Rear
- Camera ID setting Yes
- Rear view switching Reverse line
- Front view switching by remote or Kenwood unit
- Guideline view Yes
- Guideline Adjustments Size, Horizontal Direction, Red Line Position
- Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
- High voltage protection Yes
- Wide angle lens Yes
- Focal length f: 1.05mm, F value 2
- Field of View (Horizontal) +/- 195°
- Field of View (Vertical) +/- 145°
- Illumination range approx. 0.9 to 100000 lux
- Iris System Electronic
- White balance Automatically
- Scanning System Interlace
- Synchronizing System Internal
- Video output level 1Vpp, 75Ω
- Video signal format NTSC (Mirror view)
- Connection cable (DC+video) 9 m
- Operating voltage 14.5V (9 ~ 16V Allowable)
- Maximum Current Consumption 0.1A
- Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12 mm
- Weight Switch Unit 10 gr.
- Dimensions (WxHxD) 23.4 x 23.4 x 26.1mm
- Weight 23 gr.
- Operation Temperature Range -30°C ~ 70°C
- Storage Temperature Range -40°C ~ 80°C
What's Included
1 Year Warranty
- Kenwood CMOS-320
- Mount
