JL Audio MBT-CRXv2 Car & Marine Wireless Bluetooth Audio Receiver Controller

£169.00 £109.00 Save 36% Out of stock


MBT-CRXv2

Weatherproof Bluetooth® Controller / Receiver

MBT-CRXv2

Bluetooth® Audio Controller / Receiver

Designed for marine and powersports applications, the MBT-CRXv2 Bluetooth® Controller/Receiver delivers your favorite music from a Bluetooth® equipped device directly to your audio system.

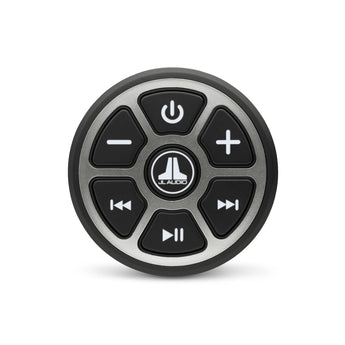

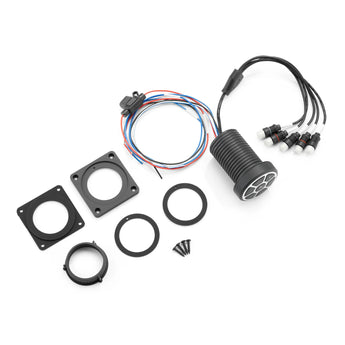

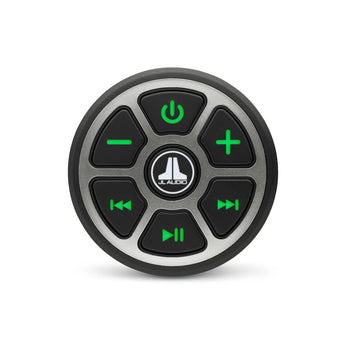

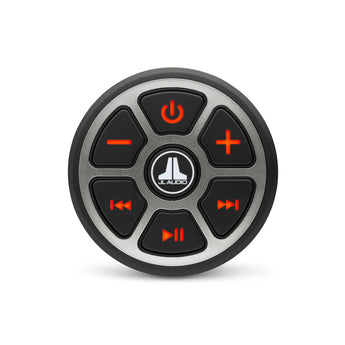

With an IP67 water resistance rating, the MBT-CRXv2 is ideal for small watercraft, motorcycles, ATV’s or other utility vehicles. Add Bluetooth® connectivity to any source unit with line-level/auxiliary inputs or connect directly to an amplifier and use it as a stand-alone source unit/receiver. Large LED backlit push-button controls are easy-to-see and easy-to-use, day or night. A small footprint and clever, one-hole design makes installation a breeze. An adaptor plate is also included for easy front mounting or where rear access is limited or not possible.

Equipped with Bluetooth® v4.0 and the Qualcomm® aptX™ audio codec, the MBT-CRXv2 sends top-quality audio and performance from compatible devices to deliver dynamic, CD-like sound without any cables. With a wireless connection range of up to 35 ft., you can conveniently control the connected audio without returning to your Bluetooth® device. This means your device can stay safely tucked-away from the elements.

When you’re ready to set sail or tackle your next adventure, great sound is waiting for you with the MBT-CRXv2 Bluetooth® Audio Controller/Receiver.

* The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JL Audio is under license.

* Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries. Use of such marks by JL Audio is under license.

Specification

Part Number: MBT-CRXv2

  • Bluetooth® Core Specification    Version 4.0 with Qualcomm® aptX™ audio
  • Current Draw    48 mA (at idle) / 64 mA (at full output)
  • Input Operating Voltage    8 - 28 VDC
  • Fuse Rating    2A Mini ATC
  • Output Voltage    2V RMS
  • Frequency Response    20 Hz - 18 kHz (±1dB)
  • S/N Ratio    93 dB (20 Hz - 20 kHz)
  • Connection Range*    Up to 35 ft / 11 m
  • Remote Turn-on Output Capacity    350 mA (max)
  • Bluetooth® Profile    A2DP (High-Quality, Stereo Audio)
  • Outputs    One Stereo Pair, Low-Level RCA Plugs
  • Bluetooth® Core Specification    Version 4.0 with Qualcomm® aptX™ audio
  • Current Draw    48 mA (at idle) / 64 mA (at full output)
  • Input Operating Voltage    8 - 28 VDC
  • Fuse Rating    2A Mini ATC
  • Output Voltage    2V RMS
  • Frequency Response    20 Hz - 18 kHz (±1dB)
  • S/N Ratio    93 dB (20 Hz - 20 kHz)
  • Connection Range*    Up to 35 ft / 11 m
  • Remote Turn-on Output Capacity    350 mA (max)
  • Bluetooth® Profile    A2DP (High-Quality, Stereo Audio)
  • Outputs    One Stereo Pair, Low-Level RCA Plugs
  • Width (W)    2.27 in / 58 mm
  • Height (H)    2.27 in / 58 mm
  • Depth (D)    0.77 in / 20 mm
  • Mounting Depth (A)    2.37 in / 60 mm
  • Mounting Hole Diameter    1.125 in / 29 mm (minimum diameter for mounting with rear of panel access) 1.875 in / 48 mm (maximum for front mounting with plate)

*Dimensions exclude optional, square mounting plate.

*Dimensions exclude optional, square mounting plate.

*Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics.

*Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics.

What's Included

2 Year Warranty

  • MBT-CRXv2
