Hertz UNO S 300 S4 12" 30cm Car Audio Sub Component Subwoofer 4 Ohm 250w RMS

£99.00
In stock

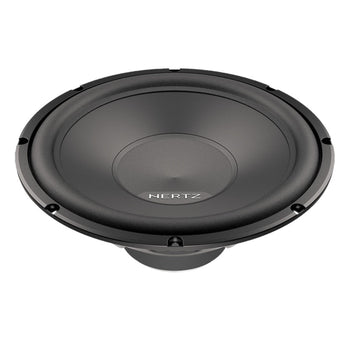

HERTZ S 300 S4 Subwoofer

300 (12) mm (in.) | Uno subwoofer | 1000 W | 4 Ohm

The 30 cm (12’) S 300 S4 car audio subwoofer, designed to obtain powerful deep bass in any installation, is the last addition to the Uno product range.

Thanks to the efficiency of 89.5 dB, achieved using lightweight materials such as paper for the cone and high density foam for the suspension, the component provides the ability to easily reach high sound pressures in the car compartment.

The exclusive patented V-cone® system ensures maximum stiffness through wide excursions, thus obtaining low undistorted frequencies at high volume.

The S 300 S4 is optimized for both reflex and sealed enclosures. The resonance frequency is as low as 33 Hz, a particularly low value considering the speaker’s high efficiency. This figure proves the degree of commitment of the Hertz R&D team to the project, aiming at maximizing the output quality and level. A pre-assembled gasket in ABS refines the product’s cosmetics ensuring an appealing look once installed.

V-CONE®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

  • Very high efficiency, superior power handling;
  • V-cone® with pressed paper membrane for maximum lightness;
  • High excursion foam surround combining high sensitivity and deep bass response;
  • Pure copper voice coil, wound on aluminium former, for exceptional thermal and mechanical capacity;
  • FEM refined motor structure employing low-carbon content steel and high-density flux ferrite magnet;
  • Designed to be used in small sealed or reflex box;
  • ABS gasket provided for aesthetically pleasant installation.
Specification

Part Number: S300 S4

  • Size mm (in.)    300 (12)
  • Power Handling - Continuous W    250
  • Power Handling - Peak W    1000
  • Impedance Ohm    4
  • No Filter Component    Uno subwoofer
  • Voice Coil Ø    38 (1.5)
  • Magnet size D x d x h mm (in.)    134 x 45 x 34 (5.28 x 1.77 x 1.34)
  • Weight of one component kg (lb.)    3 (6.61)
  • Magnet    High density flux ferrite
  • Cone    Painted Pressed Paper Pulp
  • Xmech mm (in.)    ±15,1 (0.59)
  • D mm    258
  • Xmax mm    9,1
  • Re Ohm    3,6
  • Fs Hz    33
  • Vas I    82,2
  • Mms g    112
  • Cms mm/N    0,21
  • BL T*m    11,3
  • Qts    0,6
  • Qes    0,65
  • Qms    7,8
  • Spl dB    89,5
What's Included

2 Year Warranty

  • 12" Subwoofer
  • Screws
  • Speed clips
  • Owner's manual
  • Template on box
