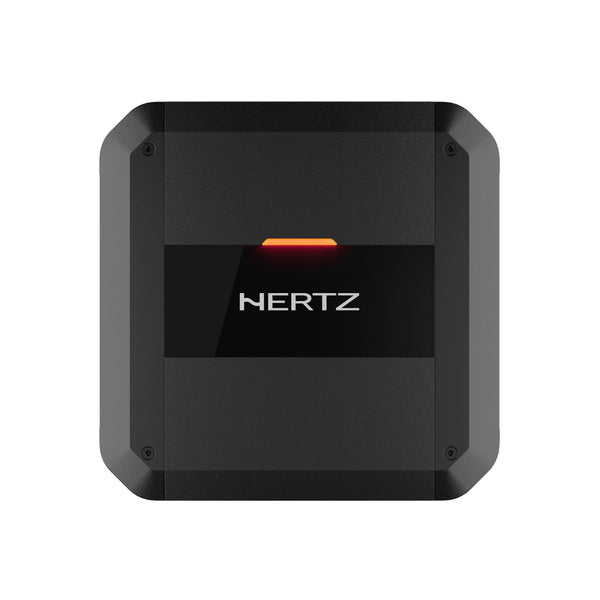

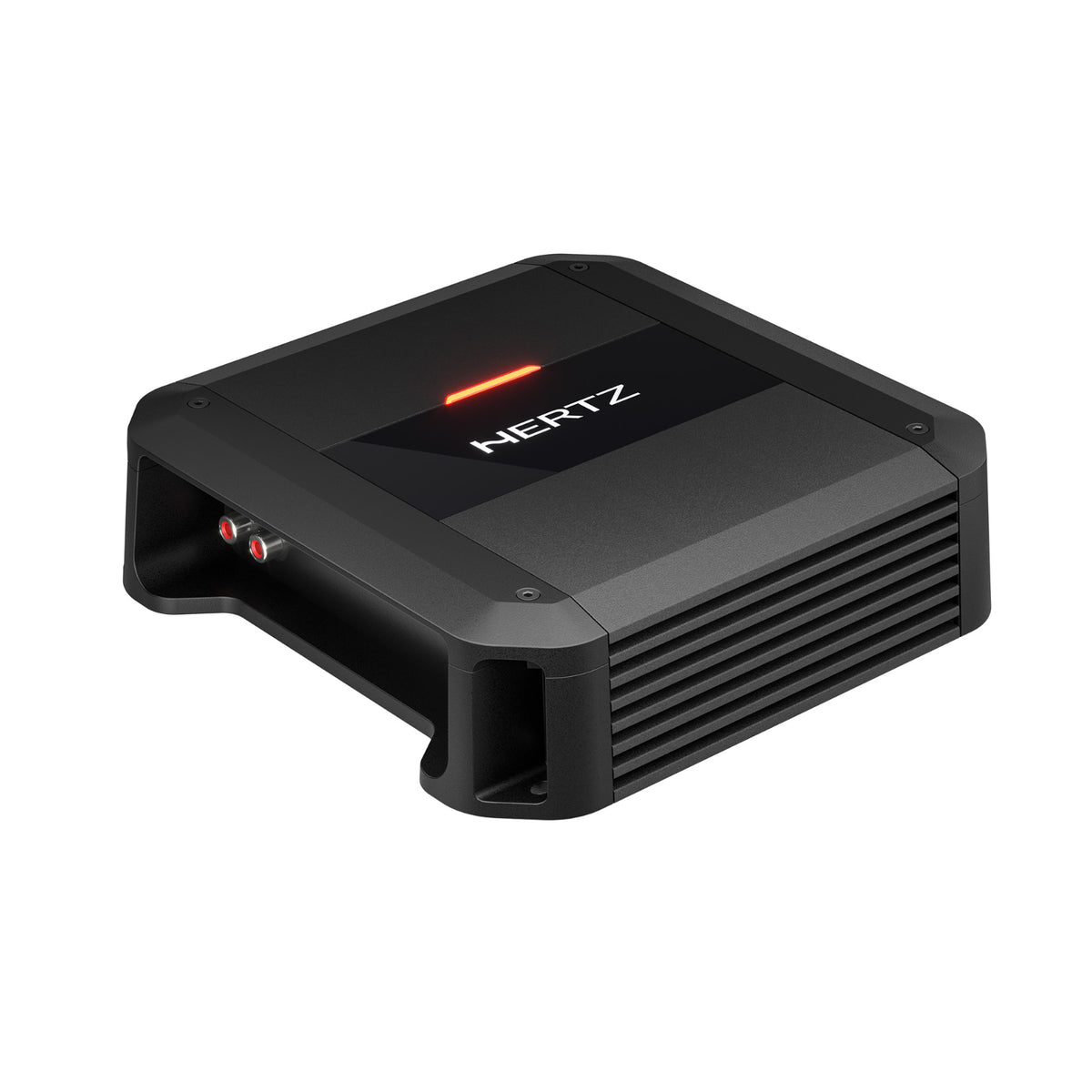

Hertz Dieci DP 1.500 Mono 1 Channel Sub Amp Subwoofer Amplifier 500w RMS

£199.99
New
In stock

DP 1.500 Ch: 1 | 590 W

Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.

Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

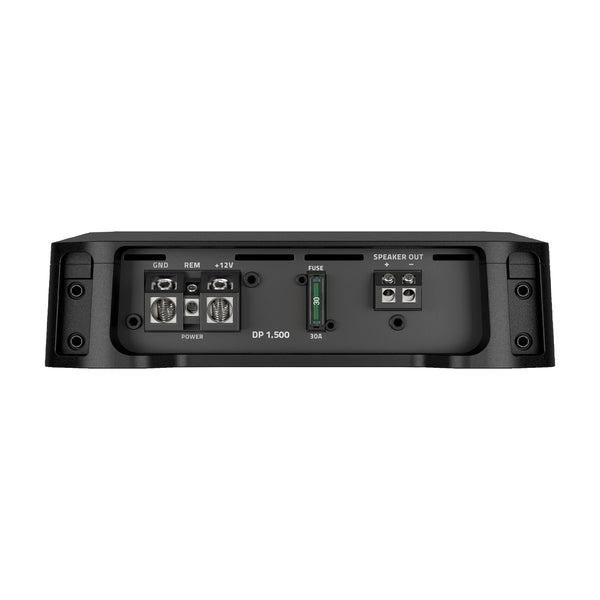

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

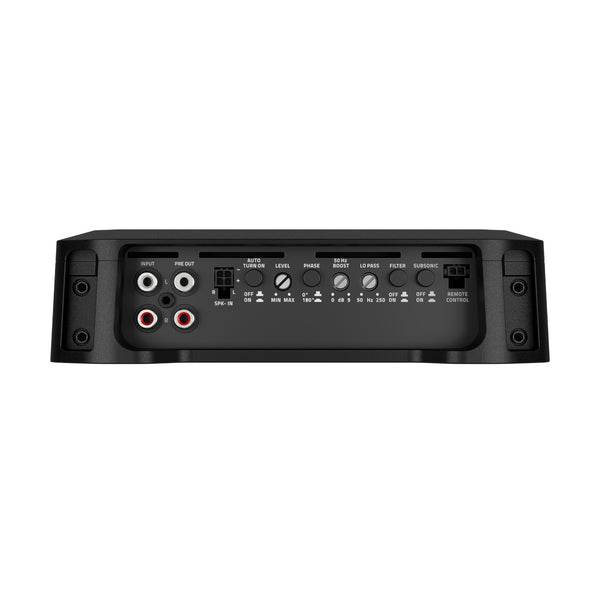

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.

Specification

Part Number: DP 1.500

  • Channels: 1
  • Amp class: D
  • Nominal power supply voltage (fuse): 11 - 15 VDC (1 x 30 A)
  • Operating power supply voltage: 6.5 - 17.5 VDC
  • Idling current: 1 A
  • Standby current draw: 50 uA
  • Consumption, MIN load impedance (Max Musical Power): 21 A
  • Remote IN: 4 - 17 VDC (1 mA)
  • ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
  • Efficiency: 86%
  • Distortion - THD @ 100 Hz, 70% Rated Power: 0.2%
  • Damping factor @ 1 kHz, 1W: 180
  • Bandwidth @ -3 dB: 10Hz - 500Hz
  • S/N ratio (A-weighted @ 1 V Input): 99 dBA
  • Minimum load impedance @ 1 Ch: 2 Ω
  • Adjustable Crossovers yes
  • Output Power
  • Output power (RMS) @ 1% THD:
  • 1Ch @ 4Ω 280 W x 1
  • 1Ch @ 2Ω 500 W x 1
  • Output Power (RMS) @ 14.4 VDC, THD 10%:
  • 1Ch @ 4Ω 350 W x 1
  • 1Ch @ 2Ω 590 W x 1
  • Total Power 1180 W
  • INPUTS / FILTERS
  • Inputs Pre-In / Speaker-In
  • Pre Out Full Range
  • Pre-In sensitivity 0.32 - 8 VRMS
  • Speaker-In sensitivity 1.6 - 40 VRMS
  • Lo-Pass OFF / 50- 250Hz 24dB/Oct.
  • Subsonic OFF / 25 Hz @ 24 dB/Oct.
  • Phase 0 / 180°
  • Bass Boost 50Hz 0 - 9 dB
  • SUB Remote Volume Control HRC 02 -20 - 6 dB
What's Included

2 Year Warranty

  • Hertz Dieci DP 1.500
