Replacement Hardwire Installation Kit for X SeriesHardwire Power Cable, Rear Camera Cable and Sticky Pads

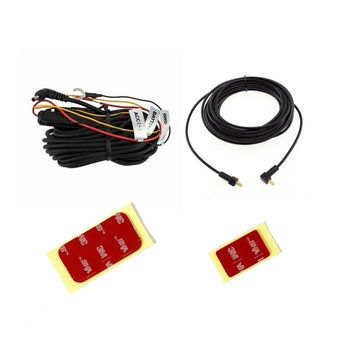

X Series Installation Kit
Hardwiring cable to connect your dashcam to your vehicle’s battery via the fuse panel. X Series dashcams feature built-in timer and voltage monitoring for Parking Mode.
Rear Camera Coaxial CableCoaxial video cables for dual-channel BlackVue dashcams.
Front and Rear camera mounting tapeExactly the same as the original sticky that came with your BlackVue
Part Number: X Series Kit
Specification

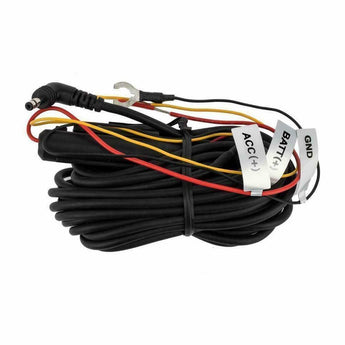

Hardwire Cable
- DC plug (Ø3.5 x Ø1.1)
- Input Black : GND / Red : ACC / Yellow: BATT
- Length 4.5m / 14.7 ft

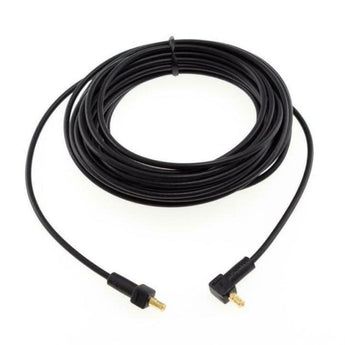

Rear Camera Cable
- Length : 6 m / 19.68 ft
- Jack Type: MCX (Right Angle) to MCX (Straight)
- Cable Type: RG-174
- Weight: 0.194 lb / 88 g

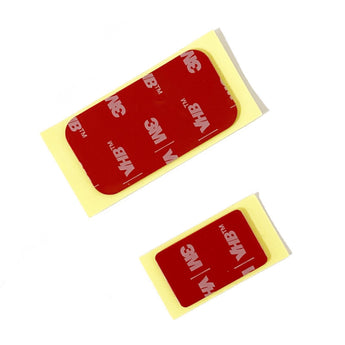

Stick Pads
Dimension: 1.92 x 1.02 in. / 48.8 x 26 mm
- DR750X-1CH
- DR750X-2CH
- DR750X-2CH IR
- DR770X-1CH
- DR770X-2CH
- DR770X-2CH IR
- DR900X-1CH
- DR900X-2CH
- DR900X-2CH IR
- DR970X-1CH
- DR970X-2CH
- DR970X-2CH IR
2 Year Warranty
What's Included
- BlackVue X Series Installation Kit
