DR770X Box
BlackVue DR770X Box features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light.

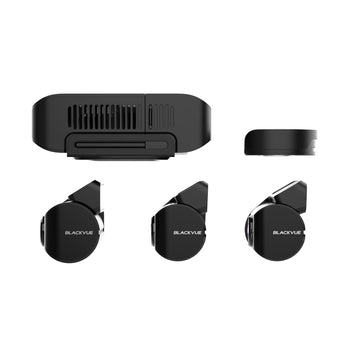

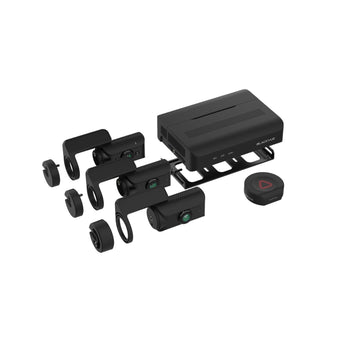

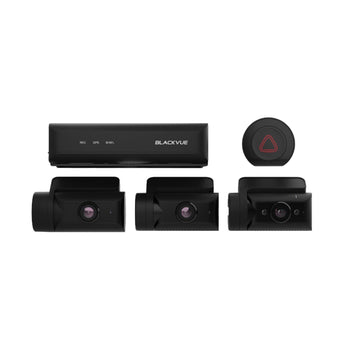

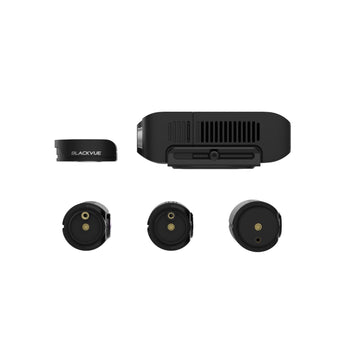

Built for Stealth and Security Triple Camera Protection + Secure Recording UnitThe DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity.
The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs.
Wireless “SOS” button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.
Three Cameras and Secure Recording BoxFront, interior and rear protection.
All three cameras use back-illuminated STARVIS image sensors that produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
Ultra-wide interior-facing camera: the 180-degree view angle allows to cover both driver-side and passenger-side windows in most vehicles. With its infrared illumination LEDs, it captures clear details even in complete darkness.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included). With the free BlackVue Cloud service, check on your car from anywhere, anytime.
GPS, Wi-Fi and Optional LTEExternal GPS (included): embeds speed and location data in your videos. This allows you to track your vehicle in real-time via BlackVue Cloud and view its location on a map during playback in the BlackVue App or Viewer.
Wi-Fi: connect to your BlackVue with a smartphone or tablet for fast file transfer. Wi-Fi also lets your BlackVue connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience.
(*) SIM card not included.
Native Parking ModeHardwiring cable included
DR770X Box Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR770X Box Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
SOS ButtonEasily and safely trigger Manual Event recording.
- Install it in an easy-to-reach location.
- Hold the button to pair it with Box unit (first-time use only).
- Press the button to trigger Manual Event recording.
- In the BlackVue App or Viewer, use the file type filters to quickly find Manual Event clips.
The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient light. The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers. With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles. Using the BlackVue App or Viewer, you can further customize the way it operates.
- 180° Image Rotation (in settings) to accommodate your setup: if the image comes out upside down, just activate this feature and it will fix the image orientation.
- Security LED ON/OFF (for stealth in Parking Mode)
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.
LTE Connectivity Module (Optional)Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100GLTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CMG100LTE is powered and connects via the USB port of your dashcam.
When connected to the CM100LTE, BlackVue DR770X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network.
Part Number: DR770X-BOX
Specification
- Channel 3CH
- Highlights Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
- Product Dimensions Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
- Rear Camera Connection Coaxial cable
- Memory Support microSD card up to 256GB
- Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Parking Mode YES (with 3-wire hardwiring cable – included)
- Parking Mode Event Voice Notifications YES
- Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle Front : Diagonal 139°, Horizontal 116°, Vertical 61° Rear : Diagonal 116°, Horizontal 97°, Vertical 51° Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°
- Resolution Frame Rate Front / Rear / Interior IR
- Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps *Frame rate may vary during Wi-Fi streaming.
- Video Codec H.264 (AVC)
- Image Quality and Bitrate Front/Rear Front / Rear / Interior
- Highest(Extreme): 16 + 10 + 10 Mbps
- Highest: 12 + 10 + 10 Mbps
- High 10 + 8 + 8 Mbps
- Normal: 8 + 6 + 6 Mbps
- Format Free YES (Adaptive)
- Event File Overwrite Protection YES (up to 51)
- SD Card Failure Alert YES
- Scheduled Reboot YES
- Video File Extension MP4
- Wi-Fi Built-in (802.11 b.g.n)
- Cloud Compatible YES
- GPS External (Dual Band : GPS, GLONASS)
- Microphone Built-in
- Speaker Built-in
- Impact Sensor 3-Axis Acceleration Sensor
- LED Indicators
- Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED
- Front : Front & Rear Security LED
- Interior IR : Front&Rear Security LED
- EB-1 : Operating/Battery low voltage LED
- Rear Camera IR Illumination
- Interior IR : 940nm (2 Infrared (IR) LEDS)
- Button EB-1 button :
- Press the button – manual recording.
- Operation Temperature -20°C – 70°C (-4°F – 158°F )
- Storage Temperature -20°C – 80°C (-4°F – 176°F )
- High Temp Cut Off Approx. 80 °C (176 °F )
- Backup Battery Built-in supercapacitor
- Input Power DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour Normal Mode (GPS On / 3CH) : Avg. 730mA / 12VParking Mode (GPS Off / 3CH) : Avg. 610mA / 12V* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
- Certifications Front (with Main unit & EB-1) : FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Rear,Rear Truck & Interior IR : KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS
- Software BlackVue Viewer* Windows 7 or higher, Mac Sierra OS X (10.12) or higherBlackVue Web Viewer* Chrome 71 or higher, Safari 13.0 or higher
- Application BlackVue Application* Android 8.0 or higher, iOS 13.0 or higher
- Others Adaptive Format Free File Management System Advanced Driver Assistance System LDWS (Lane Departure Warning System) FVSA (Forward Vehicle Start Alarm)
- Bluetooth Built-in (V2.1+EDR/4.2)
- LTE External (optional)
2 Year Warranty
What's Included
- Main Unit
- Front Camera
- Rear IR Camera
- Rear Camera
- SOS Button
- External GPS
- Main unit cigarette lighter power cable (3p)
- Camera connection cable (3EA)
- Main unit hardwiring power cable (3p)
- microSD card 64GB
- microSD card reader
- Quick start guide
- Velcro strip
- Pry tool
- Main unit key
- Allen wrench
- Spare mount sticky pads
- Screws
- Cable clips (12EA)
