COMPACT PERFORMANCE DR590X-1CH
The DR590X-1CH takes Full HD 1080p resolution video, a 139° viewing angle and Sony’s premium STARVIS image sensor and wraps it up in compact, cost effective package.
DR590X-1CH WATCHINGThe BlackVue DR590X-1CH is a high performance Full HD dash cam with an ultra-wide 139° viewing angle, Wi-Fi connectivity and excellent low-light performance. The DR590X-1CH boasts Full HD 1080p resolution and 60 frames per second (fps) video quality and is equipped with Sony’s premium STARVIS image sensor, providing outstanding performance in low-light conditions. Additionally, a Night Vision feature further enhances details in dark environments, where it matters most.
Thanks to the BlackVue app and the inclusion of Wi-Fi functionality, connecting to the DR590X-1CH from a smartphone or tablet is simple, making setup and accessing video files an easy process.
- FHD 60FPS
- 1 CH
- 139°
- Wi-Fi
Video footage can also be viewed on any Windows PC or Apple Mac computer using the supplied BlackVue Viewer application. Lastly the DR590X-1CH’s compact form factor, stealth styling and discreet mounting position behind the rear view mirror, mean it’s barely noticeable from outside of the vehicle.
With Full HD 1080p performance, the DR590X-1CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. GPS logging is available by adding the optional DR590X GPS Antenna.
FULL HD WITH STARVISFull HD 1080p with 60 frames per second video and Sony STARVIS image sensor for superior quality day or night.
PARKING MODEThe DR590X-1CH protects your vehicle even when you’re not around, thanks to BlackVue’s unique Intelligent Parking Mode.
WI-FI & OPTIONAL GPSBuilt-in Wi-Fi provides a wireless connection to your smartphone. Optional plug-in GPS available.
APP CONTROLThe BlackVue app for iOS & Android provides access to your dash cam’s configuration settings and saved video file
FULL HD 60FPS + SONY STARVISWith Full HD 1080p resolution, 60 frames per second footage, ultra-wide lens with a 139° viewing angle, and SONY’S remarkable industry-leading STARVIS image sensor, the DR590X-1CH provides class-leading protection for your vehicle, in any lighting conditions.
Part Number: BV590X1C32
Specification
- Model Name DR590X-1CH
- Channel 1CH
- Highlights Full HD, 60fps, Wi-Fi, External GPS, Sony Sensor
- Product Dimensions W 111.8 mm (4.40″) x H 34 mm (1.34″) / 86.3 g (3.04 oz)
- Memory Support microSD card up to 256GB
- Recording Modes – Normal,
- – Event (Impact Detection / Speed Limit),
- – Parking Mode (Motion+Impact Detection)
- Parking Mode YES (with optional 3-wire hardwiring cable)
- Parking Mode Event Voice Notifications YES
- Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
- Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
- Resolution Frame Rate Full HD @60fps
- * Frame rate may vary during Wi-Fi streaming
- Video Codec H.264 (AVC)
- Image Quality and Bitrate Front/Rear Highest (Extreme): 25 Mbps
- Highest: 12 Mbps
- High: 10 Mbps
- Normal: 8 Mbps
- Format Free YES (Adaptive)
- Event File Overwrite Protection YES
- SD Card Failure Alert YES
- Scheduled Reboot YES
- Video File Extension MP4
- Wi-Fi Built-in (802.11n (2.4~2.4835 GHz))
- GPS External (Optional – Dual Band: GPS, GLONASS)
- Microphone Built-in
- Speaker Built-in
- Impact Sensor 3-Axis Acceleration Sensor

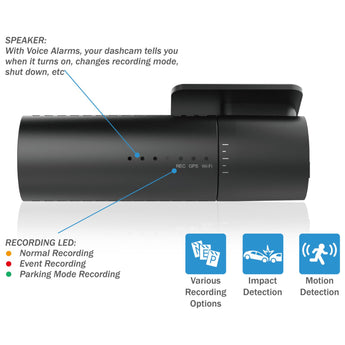

- LED Indicators Front: Recording LED, GPS LED, Front Security LED
- Rear: Rear Security LED

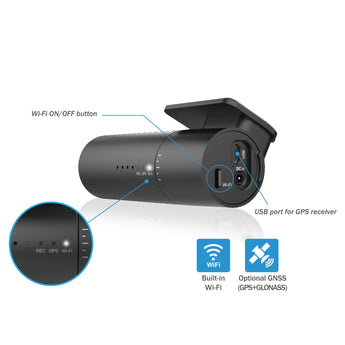

- Button Wi-Fi ON/OFF
- Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
- Storage Temperature -20℃ – 80℃ (-4°F – 176°F)
- High Temp Cut Off Approx. 70℃ (158°F)
- Backup Battery Built-in supercapacitor
- Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)
- Power Consumption Hour Normal Mode (WiFi On/GPS On): 370mA/hour
- Normal Mode (WiFi Off/GPS On): 330mA/hour
- Parking Mode (WiFi On/GPS Off): 340mA/hour
- Parking Mode (WiFi Off/GPS Off): 300mA/hour
- * Actual power consumption may vary depending on use conditions and environment.
- Certifications FCC, CE, UKCA, RoHS, Telec, WEEE, IC
- Software BlackVue Viewer
- * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
- Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
- Others Adaptive Format-Free File Management System
2 Year Warranty
What's Included
- Front Camera
- 32GB Card
- Hardwiring power cable
- Cigarette lighter power cable
- microSD card reader
- Cable clips (5EA)
- Double-sided tape for the Mounting Bracket
- Pry tool
- Quick start guide
