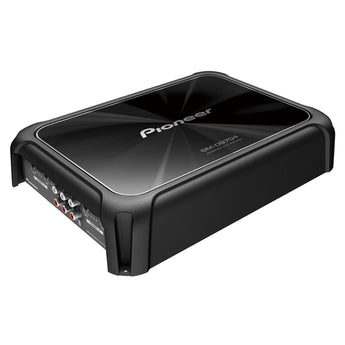

Pioneer GM-D9704 Stereo Amp Compact 4 Channel Class FD Car Amplifier 800w RMS
GM-D9704
4-Channel Class-FD Car Amp.
Compact 4 Channel Power
An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.
Speaker line input sensor
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters
Variable LPF
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Variable HPF
Variable HPFadjust your high-pass filter frequency for greater audio system flexibility
Multi-block Terminal
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output
D-class
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units
Specification
Part Number: GM-D9704
- Variable LPF
- D-class
- Channel(s) 4 / 2 / 1
- RCA terminals yes
- Speaker Terminals Block-type
- LPF yes
- HPF yes
- Maximum power 4 x 260W (4Ω)
- 4 x 400W (2Ω)
- 1600W Total
- Continuous power output 4 x 130W RMS (4Ω)
- 4 x 200W RMS (2Ω)
- 4 x 130W RMS (1Ω)
- 2 x 400W RMS (4Ω bridged)
- 2 x 260W RMS (2Ω bridged)
- Frequency response 10 Hz - 50 Hz
- Input level control RCA (0.2V - 6.5V)
- SP (0.8V - 16V)
- Distortion < 0.05 %
- S/N ratio > 95 dB
- Chassis size (W x H x D) 252 x 60 x 215 mm
- Crossover Frequency 40 - 500Hz (-12 dB/oct) Hz
- Variable HPF
- Connections
- Multi-block Terminal
What's Included
2 Year Warranty
- Pioneer GM-D9704
- Manual
