Pioneer GM-D9701 Mono Amp 1 Channel Class D Car Amplifier and Bass Boost Remote
GM-D9701
Mono 2400W Class-D Car Amp, with Bass Boost Remote Compact Power
An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.
Speaker line input sensor
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters
Variable LPF
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Multi-block Terminal
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output
D-class
D-class enjoy first class sound and powerful volume on a versatile system at half the size of other units
Specification
Part Number: GM-D9701
- Variable LPF
- D-class
- Channel(s) 1
- RCA terminals yes
- Speaker Terminals Block-type
- LPF yes
- Maximum power 1 x 1000W (4Ω)
- 1 x 1600W (2Ω)
- 2400W (1Ω)
- Continuous power output 1 x 500W RMS (4Ω)
- 1 x 800W RMS (2Ω)
- 1 x 1200W RMS (1Ω)
- Frequency response 10 Hz - 240 Hz
- Input level control RCA (0.2V - 6.5V)
- SP (0.8V - 16V)
- Distortion < 0.05 %
- S/N ratio > 100dB
- Chassis size (W x H x D) 302 x 60 x 215 mm
- Bass Boost Yes, bass boost remote included

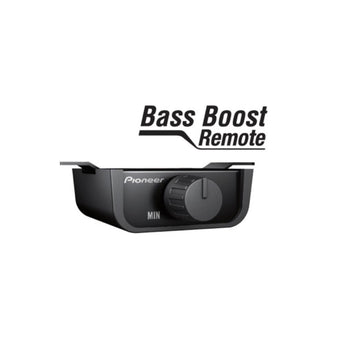

- Bass Boost Remote
- Crossover Frequency 40 - 500Hz (-12 dB/oct) Hz
- Mono
- Connections
- Multi-block Terminal
What's Included
2 Year Warranty
- Pioneer GM-D9701
- Bass Boost Remote
- Manual
