JL Audio C3-100CT 1" 25mm Car Component Tweeters & Crossovers Pair 75w RMS
C3-100ct
1-inch (25 mm) Component Tweeters, Pair
C3-100ct

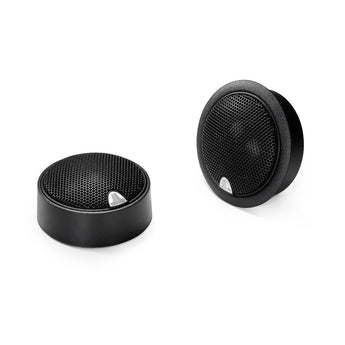

1-inch (25 mm) Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C5-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
Specification
Part Number: C3-100CT
- Continuous Power Handling (RMS) 75 W
- Peak Music Power* 225 W
- Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
- System Efficiency 90.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 4 kHz - 25 KHz ± 3 dB
- Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
- Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
- Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
- Flush Mount Mounting Depth (C) 0.71 in / 18.0 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm
What's Included
2 Year Warranty
