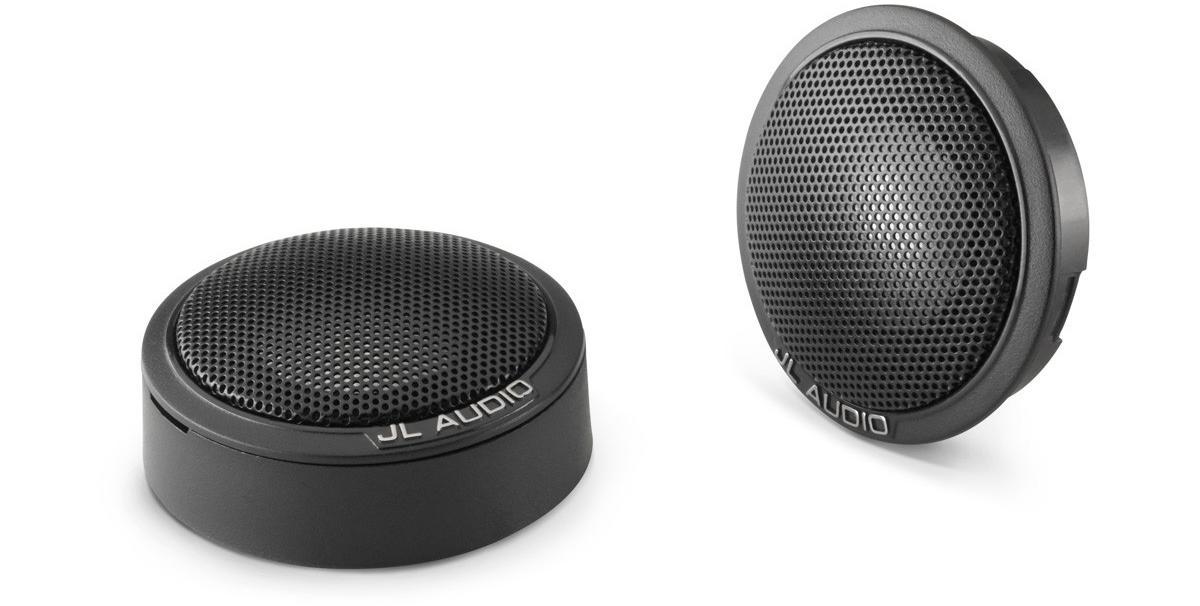

JL Audio C1-100CT 1" 25mm Car Component Tweeters & Crossovers Pair 60w RMS
C1-100ct
1-inch (25 mm) Component Tweeters, Pair
C1-100ct
1.0-inch (25 mm) Aluminum Dome Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
Specification
Part Number: C1-100CT
- Continuous Power Handling (RMS) 60 W
- Peak Music Power* 150 W
- Recommended Amplifier Power (RMS) 20 - 60 W / Ch.
- System Efficiency 91.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 3.6 kHz - 22 KHz ± 3 dB
- Flush Mount Fixture Diameter (A1) 1.97 in / 50 mm
- Surface Mount Fixture Diameter (A2) 2.01 in / 51 mm
- Flush Mount Mounting Hole Diameter (B) 1.75 in / 45 mm
- Flush Mount Mounting Depth (C) 0.40 in / 10 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.87 in / 22 mm
- Width (W) 1.96 in / 50 mm
- Depth (D) 1.34 in / 34 mm
- Height (H) 0.90 in / 23 mm
*With supplied crossover
