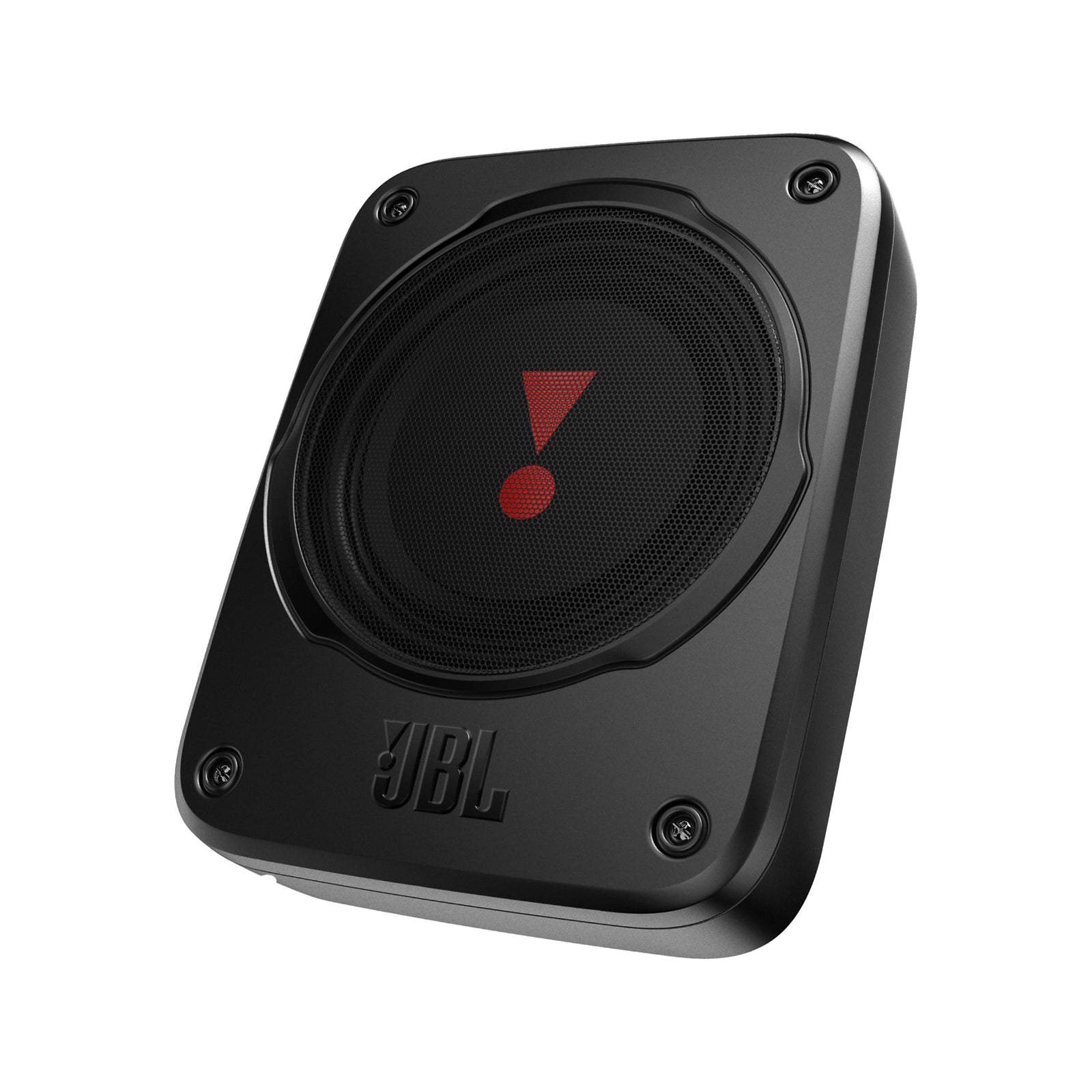

JBL BassPro Lite Sub Compact Powered Active Underseat Car Subwoofer 100w RMS
JBL BassPro Lite
Compact Underseat Subwoofer
Ultra-Compact, Super Bass, Powerful - JBL BassPro LITE delivers deep bass and takes up ultra-compact space.
JBL’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, BassPro LITE delivers accurate, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.
Big Bass, ultra-compact space
- Upgrade easier, Connected in series
- Intelligent Electronic Design for Reliable and Extraordinary Performance
- Die-Casting Aluminium Enclosure Design
- Bass boost Volume Control
- Features and Benefits
- Big Bass, ultra-compact space
- JBL BassPro LITE delivers deep bass and takes up ultra-compact space. Its onboard 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass
Upgrade easier, Connected in series
JBL BassPro LITE can be connected in series for user upgrade to purchase 2 set devices. The secondary BassPro LITE is still adjusted by them-self without extra Power / Single complex wires
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassPro LITE employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminium Enclosure Design
The all-die-cast aluminium enclosure design is not only Ultra-compact size, but the ALL IN ONE is combined elegant JBL industry design element and powerful acoustic performance.
Bass boost Volume Control
Bass boost Volume control is intergraded on I/O panel to let you adjust the sound freely
Specification
Part Number: BassPro Lite
- Driver Complement: super powerful 7” (178mm) Subwoofer
- Amplifier Power: Class D, 100Wrms; 200W Max
- Frequency Response: 30Hz – 150Hz
- Fuse: 15A
- Maximum Current Draw: 15 A
- Quiescent Current Draw: Input Sensitivity: 0.18 V – 5.0 V Low-
- Level Input; 0.75 V – 20V High-Level Input
- Crossover Frequency: 50 Hz – 150 Hz
- Crossover Slope: 12 dB/octave
- Bass Boost: 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H): 10-1/4” x 8” x 2-9/16” (259.6mm x 203.1mm x 65.5mm)
- Weight: 8 lbs (3.5kg)
What's Included
1 Year Warranty
- Under seat subwoofer
- Screws
- Wiring harness for power and speaker level input (300mm)
- 15A Fuse
