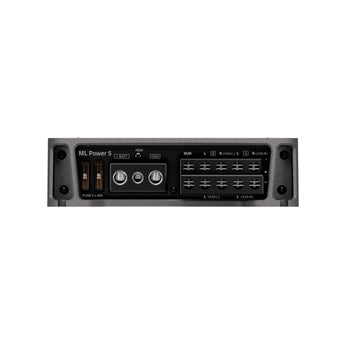

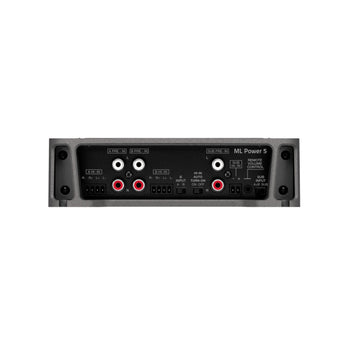

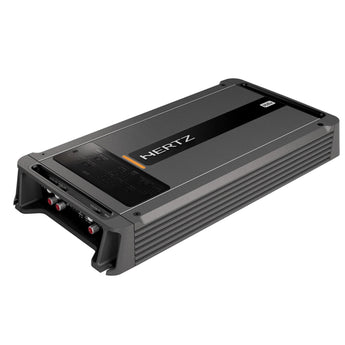

Hertz Mille ML Power 5 Multi Channel Stereo Class D Amp Amplifier 950w RMS
ML Power 5 FIVE CHANNEL AMPLIFIER Ch: 5 - 3 | 950 W
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers.
The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.
ADVANCED D-CLASS TECHNOLOGY
Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.
LEDS STATUS DISPLAY
It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.
HDP IN & ART(TM)
The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART™ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant “bumps”.
ADVANCED HEATSINK
The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.
The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
Specification
Part Number: ML Power 5
- Channels 5 - 3
- Power supply voltage: 11÷15 VDC
- Idling current: 3 A
- Idling current when off: 0.04 mA
- Consumption @ 2Ω, 14.4 VDC
- (Max Musical Power) 50 A
- Distorsion - THD (100 Hz @ 4Ω): 0.08 %
- Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz
- Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz
- S/N Ratio A & B Ch (A weighted @ 1 V) 100 dB
- S/N Ratio C Ch (A weighted @ 1 V): 106 dB
- Damping factor A & B Ch (100 Hz @ 4Ω): 50
- Damping factor C Ch (100 Hz @ 4Ω): 90
- Pre-In sensitivity: 0.2 ÷ 5 V RMS
- Pre-In impedance: 15 kΩ
- Speaker-In sensitivity: 0.8 ÷ 20 V RMS
- Speaker-In impedance: 470 Ω
- Load impedance:
- 5 Ch 4 x 2Ω + 1 x 2Ω
- 3 Ch 2 x 4Ω + 1 x 2Ω
- Remote In: 4 ÷ 15 VDC - 1 mA
- ART™: Automatic Remote Turn-On/Off with Speaker-In
- Fuse: 2 x 40 A
- Max size (mm/inches): 170 x 349 x 46.70 / 6.69 x 13.74 x 1.84
- Weight (kg/lb):
- Adjustable Crossovers yes
What's Included
2 Year Warranty
- ML Power 5 amplifier
- Quick Start Guide
- Warranty Card
- 40 A blade fuse
- 4,2 x 16 mm self-tapping, cross-headed fixing screws.
