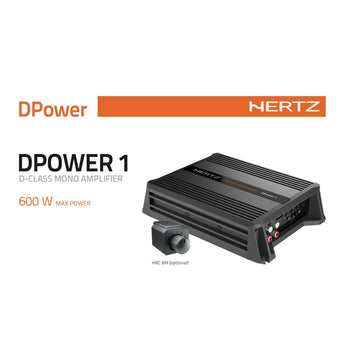

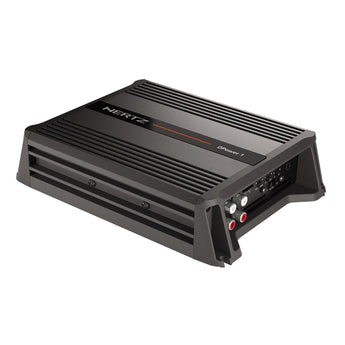

Hertz D Power 1 Channel Mono Sub Amp Class D Car Subwoofer Amplifier 300w RMS
D Power 1 Ch: 1 | 300 W The access gate to the hertz signature power
Excellent for OEM systems upgrade, the Hertz DPower1 mono car audio amplifiers is an ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
- ULTRA-COMPACT
- VERSATILE X-OVER
- ART AUTO TURN-ON/OFF
- HIGH POWER/SIZE RATIO

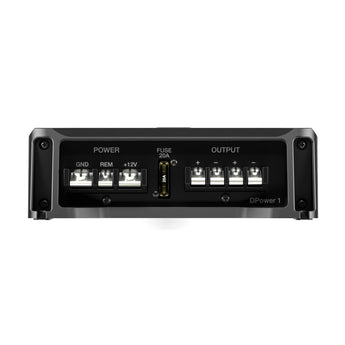

- SPEAKER & RCA INPUTS
The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
The double SPEAKER & RCA INPUTS allows the DPower1 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems DPower1 is equipped with a smart automated turn on and off circuit according to the factory radio.
Specification
Part Number: D Power 1
- Channels 1
- Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 20 A
- Idling current (power ON/OFF) 1 A / 0.04 mA
- Consumption @ 2Ω, 14.4 VDC
- (Max Musical Power): 20 A
- Remote In: 4 ÷ 15 VDC - 1 mA
- ART™: Automatic Remote Turn-On/Off
- Distortion - THD (100 Hz @ 4Ω): 0.1 %
- Bandwidth (-3 dB): 10 ÷ 500 Hz
- S/N Ratio (A weighted @ 1 V) 105 dB
- Damping factor (100 Hz @ 4Ω) 100
- Pre-In sensitivity: LO: 0.2 ÷ 5 V
- HI: 0.8 ÷ 20 V
- Load impedance (MIN) 2Ω
- Max size (mm/inches): 222,2 x 160 x 50,5 / 8.75 x 6.3 x 1.99
- Weight (kg/lb): 1.61 / 3.54
- Adjustable Crossovers yes
What's Included
2 Year Warranty
- Hertz D Power 1
