Helix IK E8.1-SVC2 Sub Ported 8 Inch Downfire Compact Subwoofer Enclosure 300w RMS
HELIX IK E8.1-SVC2
The HELIX IK E8.1-SVC2 combines compactness with a powerful low-frequency punch. Its downfire enclosure ensures optimal bass dispersion while offering robust protection for the speaker, making it a smart solution for tight spaces without compromising on sound quality.
Compact and efficient design

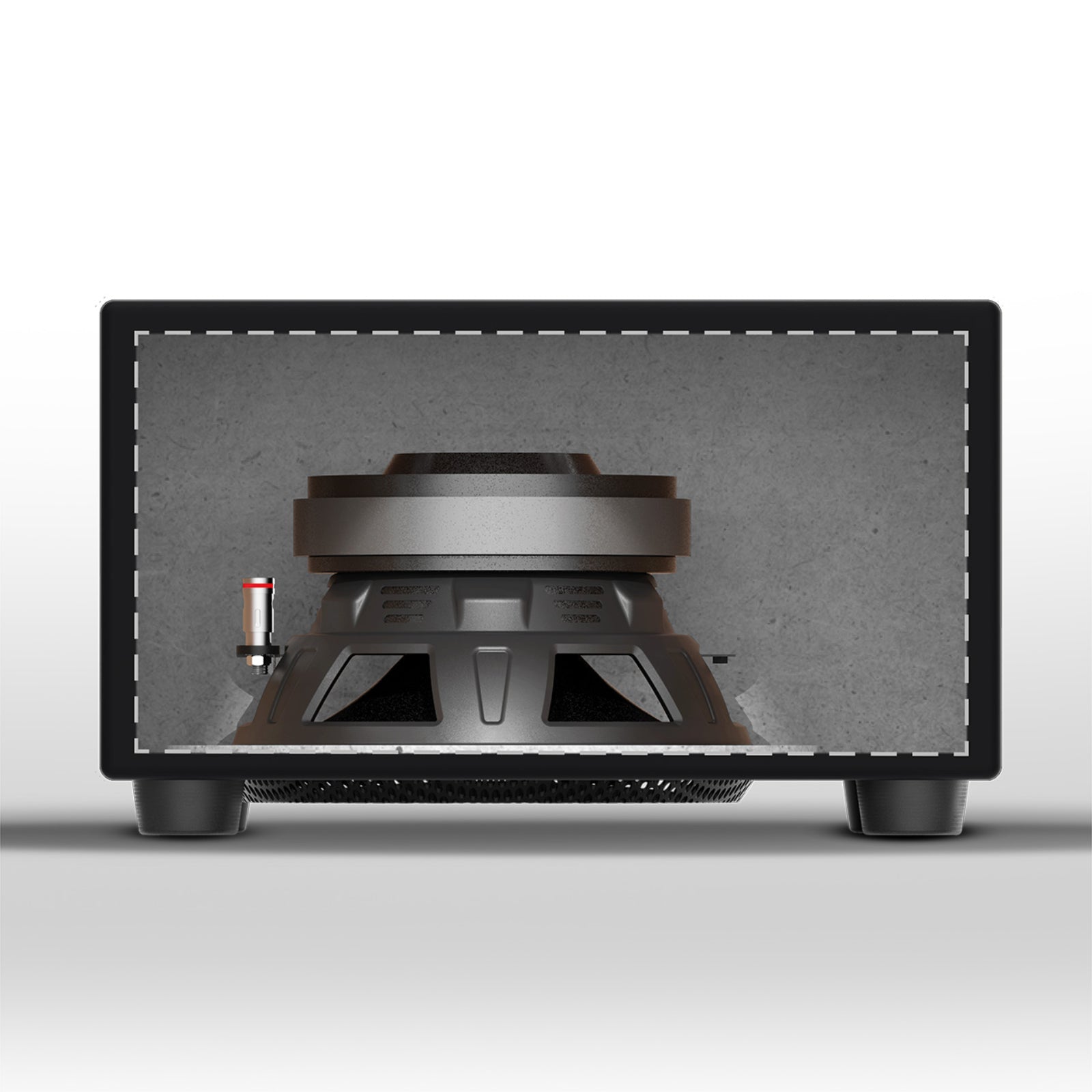

The sophisticated and compact ported enclosure design of the IK E8.1-SVC2 delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8” (200 mm) subwoofer featuring a hand-scooped paper cone, this subwoofer ensures rich, powerful low-frequency performance across the entire vehicle.
Comfortable installation and configuration

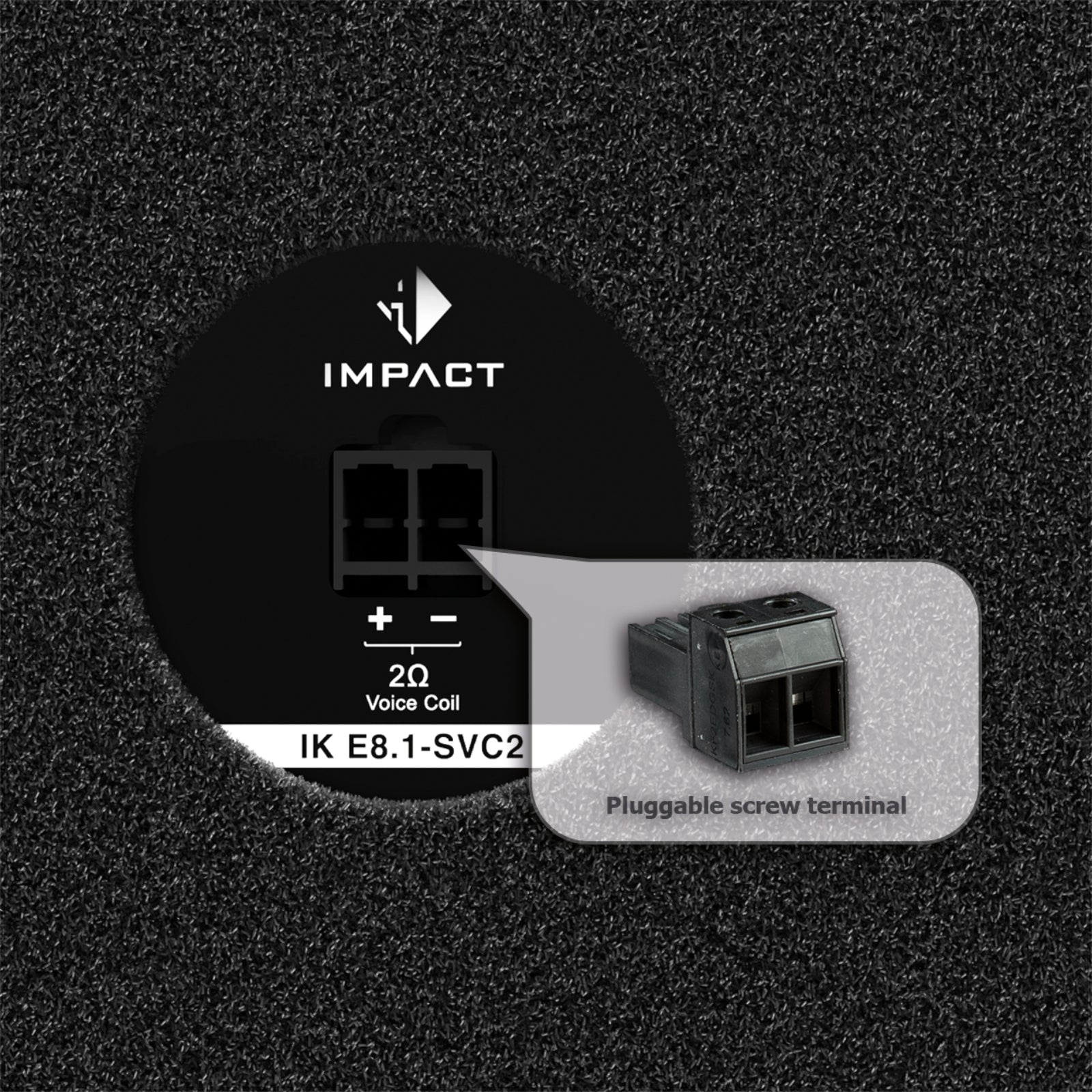

With the pluggable screw terminal, installation or removal of the subwoofer is fast and secure. The single 2 Ohms voice coil provides the groundwork for the maximum power output from the amplifier.
Built for durability

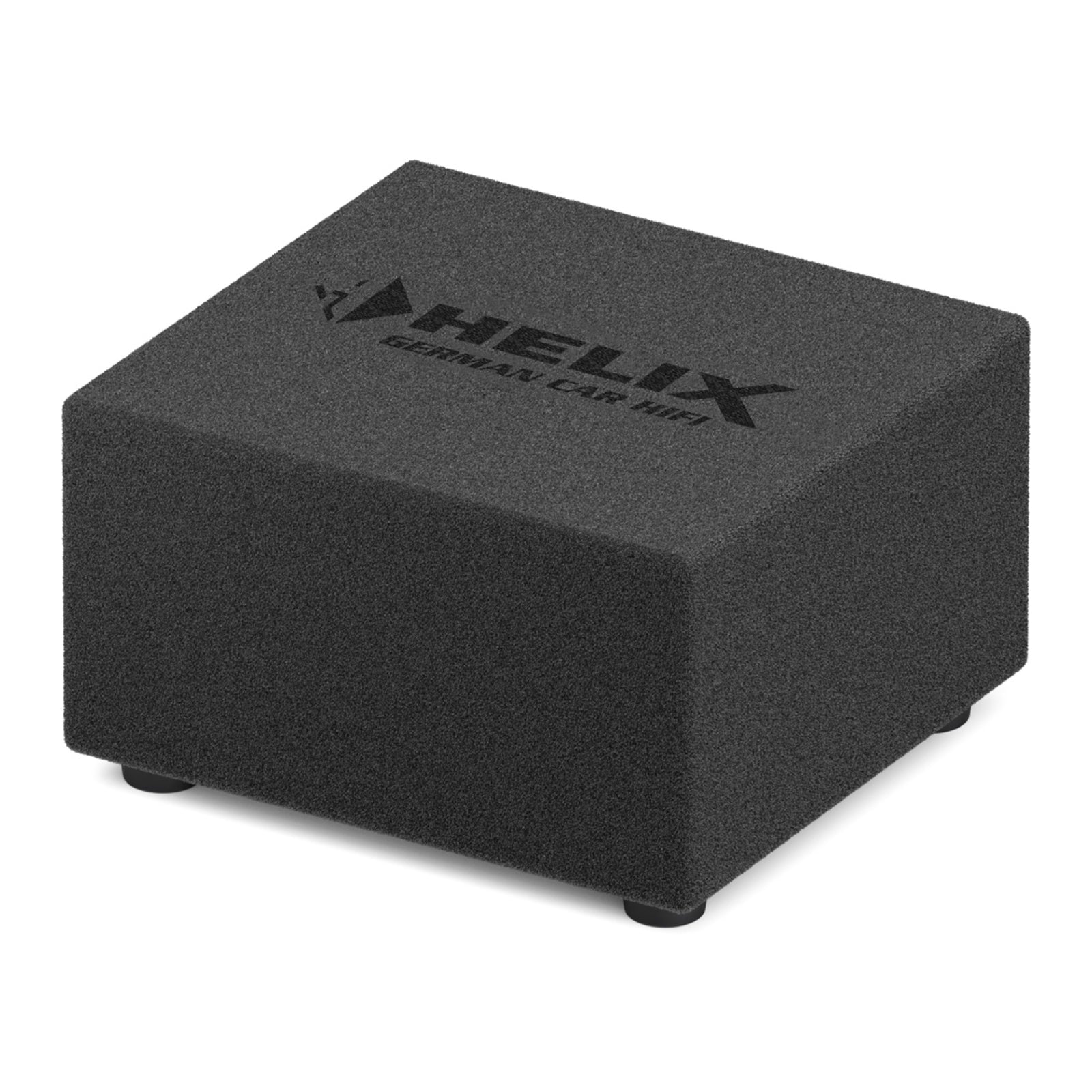

The enclosure is covered with a sturdy carpet featuring the embroidered HELIX logo, ensuring both style and resilience. Furthermore, the feet, equipped with Velcro tape, provide a secure and stable stand within the vehicle.
Features

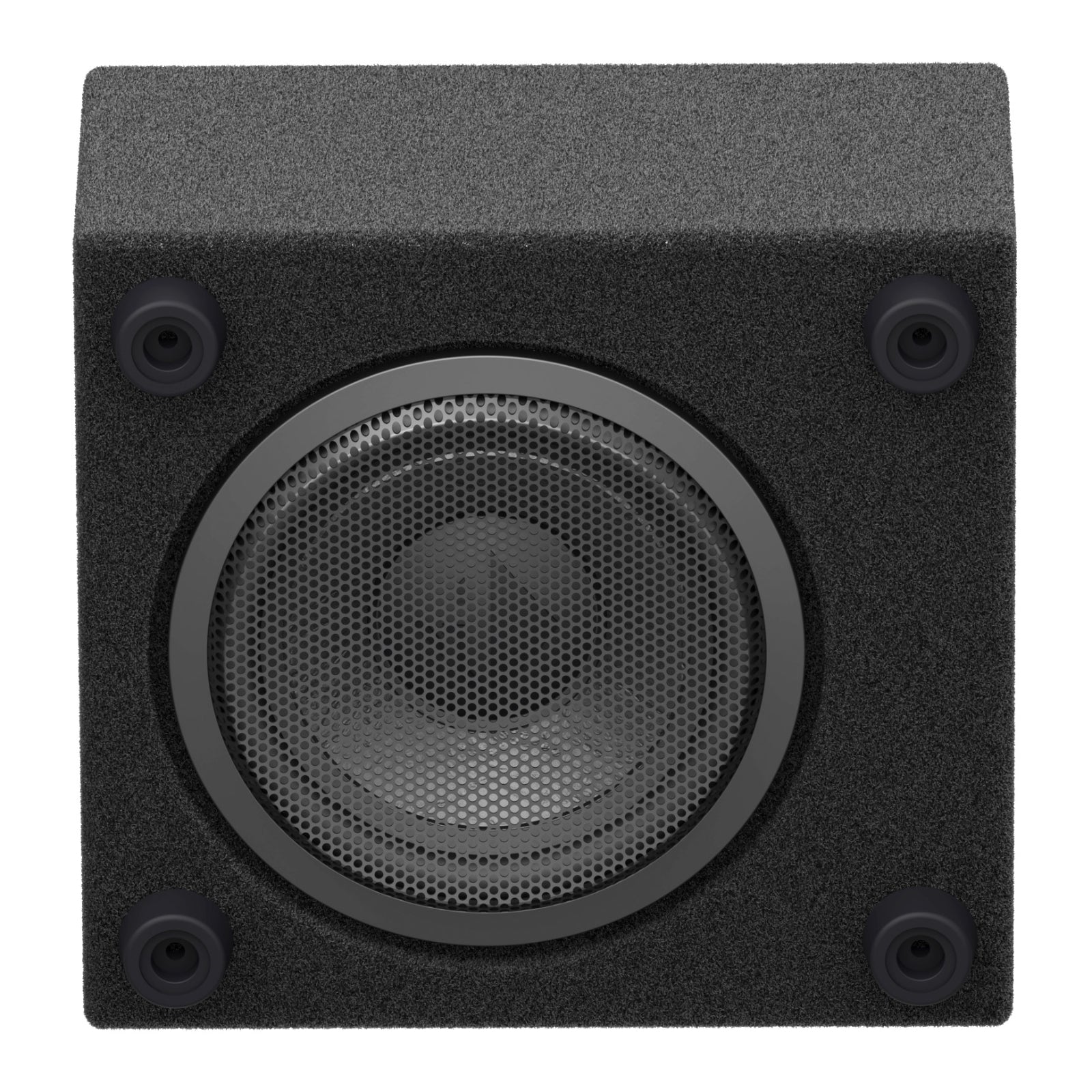

- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
- Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier
- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle
- Sturdy carpet surface with embroidered HELIX logo
Specification
Part Number: IK E8.1-SVC2
- Power handling RMS P 300 Watts
- Recommended amplifier power RMS 150 - 300 Watts
- Impedance z 1 x 2 Ω
- Max. linear excursion Xmax +/- 8.0 mm
- Port tuning frequency Fb 43 Hz
- Sensitivity SPL 91 dB @ 2.83V / 1m 85 dB @ 1W / 1m
- Dimensions (H x W x D) 184 x 310 x 285 mm 7.2 x 12.2 x 11.2"
- Integrated subwoofer chassis HELIX IK W8-SVC2
- Recommended DSP settings "Self-define" highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB
What's Included
2 Year Warranty
- 1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
