Helix Compose i7 Ci7 FX-UNI.2 Flex Crossover for i7 Series Tweeters, Midrange & Woofer

£249.99
In stock

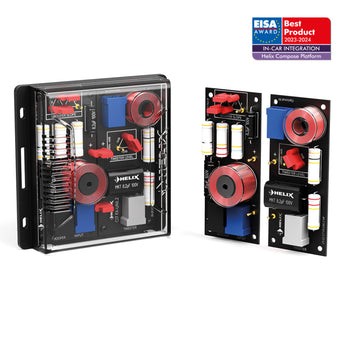

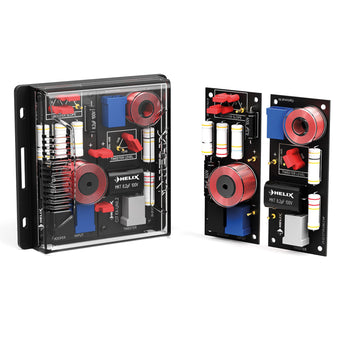

HELIX Ci7 FX-UNI.2

HELIX COMPOSE. The perfect speaker for any composition.

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems.

Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

Ideal frequency separation and flexible integration options

Our Ci7 FX-UNI.2 crossover is designed for the ideal use with our HELIX Compose i7 components, and thus for the COMPOSE-typical, professional integration into the vehicle. It offers a 4-stage tweeter level adjustment for the optimal adaptation to the installation position as well as numerous lowpass filter adjustment options with 12 dB slope to perfectly match the connected COMPOSE midrange, midbass or woofer.

In addition, with absolutely high-quality components and the complex tuning of the crossover, no expense and effort were spared to maintain the best possible distribution of the frequency band, a harmonious sound image and top quality. Thanks to the “Flex-Crossover” design, the Ci7 FX-UNI.2 offers flexible integration options and is well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer. And of course, it’s compatible with our COMPOSE Connect and WireKit technologies for a safe and fool-proof connection according to automotive standards.

COMPOSE Connect

Kiss tinkering and soldering goodbye. Compose Connect is the sophisticated plug-in connection that considerably simplifies car audio installation in conjunction with HELIX COMPOSE components. Proprietary plastic housings into which standard flat plugs and couplings can be snapped, establish an absolutely safe connection in accordance with automotive standards that prevents any polarity reversal.

WireKits – Plug & Play at its best

Our WireKits realize the connection of HELIX COMPOSE crossover to the original wiring harness in the most comfortable way. With manufacturing according to the high standards of the automotive industry, these arrestable adaptor cables meet all requirements for the harsh environmental conditions that installers are facing in vehicles every day.

Specification

Part Number: Ci7 FX-UNI.2

  • 4-stage tweeter level and woofer lowpass filter adjustment for optimized for precise matching to mounting position
  • Extensively fine-tuned with 12 dB slope for tweeter and woofer
  • COMPOSE Connect – Smart, automotive grade connectors for fail-safe and secure installation
  • “Flex-Crossover“ – separable and therefore well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer
  • Designed for optionally available, car-specific WireKits which allow a non-destructive integration
  • Crossovers solely equipped with high grade components for perfect separation of the frequencies and best sound quality
  • Compatible with all COMPOSE i7 loudspeakers
  • Slope Tweeter: 12 dB highpass
  • Woofer: 12 dB lowpass
  • Tweeter level adjustment range -4 dB up to +2 dB
  • Features Designed for Ci7 T20FM-SC,
  • 4-stage tweeter level adjustment,
  • 4-stage woofer lowpass filter adjustment to all COMPOSE midrange, midbass and woofer speaker

Tweeter

  • Ci7 T20FM-SC


Midrange / Midbass / Woofer

  • Ci7 M100FM-S3
  • Ci7 W130-S3
  • Ci7 W165FM-S3
  • Ci7 W200FM-S3
What's Included

2 Year Warranty

  • 2 x Ci7 FX-UNI.2
  • 2 x COMPOSE Connect Kit
  • 4 x PCB sleeves
  • 1 x Mounting material

High-End Made in Germany

Our HELIX COMPOSE i7 series represents uncompromising high-end for an outstanding sound experience in the automobile. With obvious influence of the highly praised sister brand BRAX, the i7 speaker series is the undisputable peak of the HELIX COMPOSE lineup, completely made in Germany and optimized for uncompromising music enjoyment. A sonic delight for even the most ambitious music enthusiasts.All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time.Of course, the i7 series is compatible with all HELIX COMPOSE technologies such as FlexMount, FlexConnect, ProConnect, COMPOSE Connect and the WireKits. All components of the i7 speaker series are available individually, enabling the assembly of each system concept according to individual needs and thus meeting the highest musical requirements.

The details make the difference

Only the highest quality materials such as the Ultra High Damping crafted paper cone are used in our i7 series in order to achieve a maximum impulse and an unmatched frequency response. The speaker baskets are made of a high-tech polymer composite, which is additionally reinforced with glass beads for maximum rigidity and minimum ringing

The 100 mm / 4” COMPOSE speaker particularly stands out due to its flat design and large diaphragm area and its extraordinarily powerful, highly efficient push-pull nodymium magnet systems, delivering a dynamic, controlled midrange reproduction.

The super-wide dispersion tweeter is equipped with a fine-meshed silk dome, guaranteeing a brilliant and smooth treble response. In addition, the integration of unique acoustic insulation materials and dampened coupling volume allows a deep acoustic coupling.

Our i7 crossover offers maximum flexibility with many configuration options and is therefore suited for any combination of tweeters and midrange / woofers, assuring an easy and professional integration. The “Flex-Crossover” design, enables an installation with separate tweeter and midrange / woofer mounting positions.
