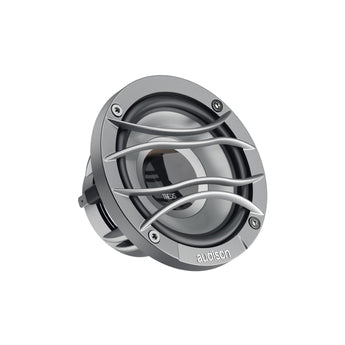

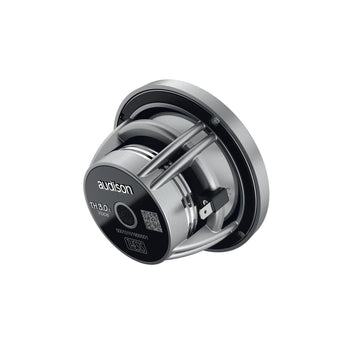

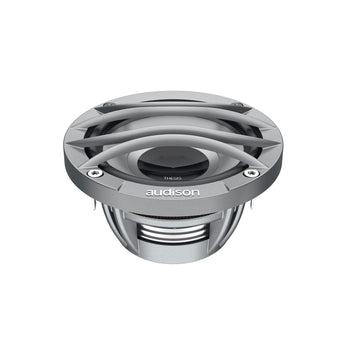

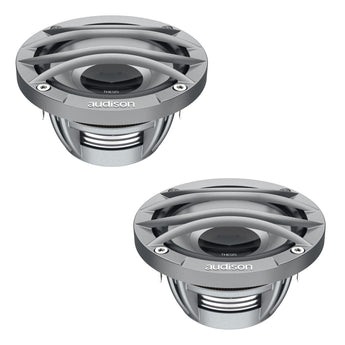

Audison Thesis TH 3.0 II Voce 3" 70mm Midrange Dash Door Speakers with Grills

THESIS TH 3.0 II voce

Mid Range | 110 W Peak Power | 70 mm | 4 ohm

Transparency, a direct inheritance of the HV venti, is the principle that inspired the creation of Thesis speakers, born with the ambitious goal of giving voice to the pure musical message of Thesis electronics. The search for the best acoustic result was based on overcoming the intrinsic limits of traditional loudspeakers. Through a finite element simulation software (FEM) conceived by the Audison R&D team, a mathematical model was developed, which they used to create, with an intense prototyping activity, the ideal transducer.

The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum.The R & amp;D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance.

• 30,5 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
• Aluminium demodulation ring which linearizes the high excursion intermodulation distortion, canceling any sound colorations.
• N38 “H-grade neodymium magnet included in the voice coil to obtain superior control of the mobile crew and superior thermal stability.
• Motor geometry designed using finite element simulation software to optimize efficiency by concentrating the magnetic field in the gap.
• Membrane made of TPX®, a transparent material that reduces frequency response irregularities and provides a view of the inside of the speaker.
• Membrane geometry designed by simulation software to obtain homogeneous directivity.
• Optimized cone/surround break-up with extensive simulations to linearize the response at medium frequencies.
• Basket made of a single piece of die-cast aluminium with four pairs of spokes for maximum rigidity without slowing down the air flow.
• Suspension and spider with very high excursion, optimized with simulations of the multi-physical behavior of the speaker.
• eID technology for the traceability of TH 3.0 II Item from production to purchase.

ULTRA HIGH CONTROLThe extremely powerful custom N38 H-grade Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.

EXTREME LINEARITYThrough finite element simulation (FEM) the Audison R & amp;D team has optimized the break-up point between cone/surround, obtaining an ultra-linear frequency response in the mid-range.

The generous 30 mm CCAR (Copper Clad Aluminum Ribbon) voice coil wound with flat wire gives the TH 3.0 II Voce an extraordinary excursion and minimizes at the same time the cone non-linearity.TPX ® CONETH 3 II Voce membrane is made of TPX ®, a transparent material that ensures frequency response linearity leaving the speaker interior in full view.
