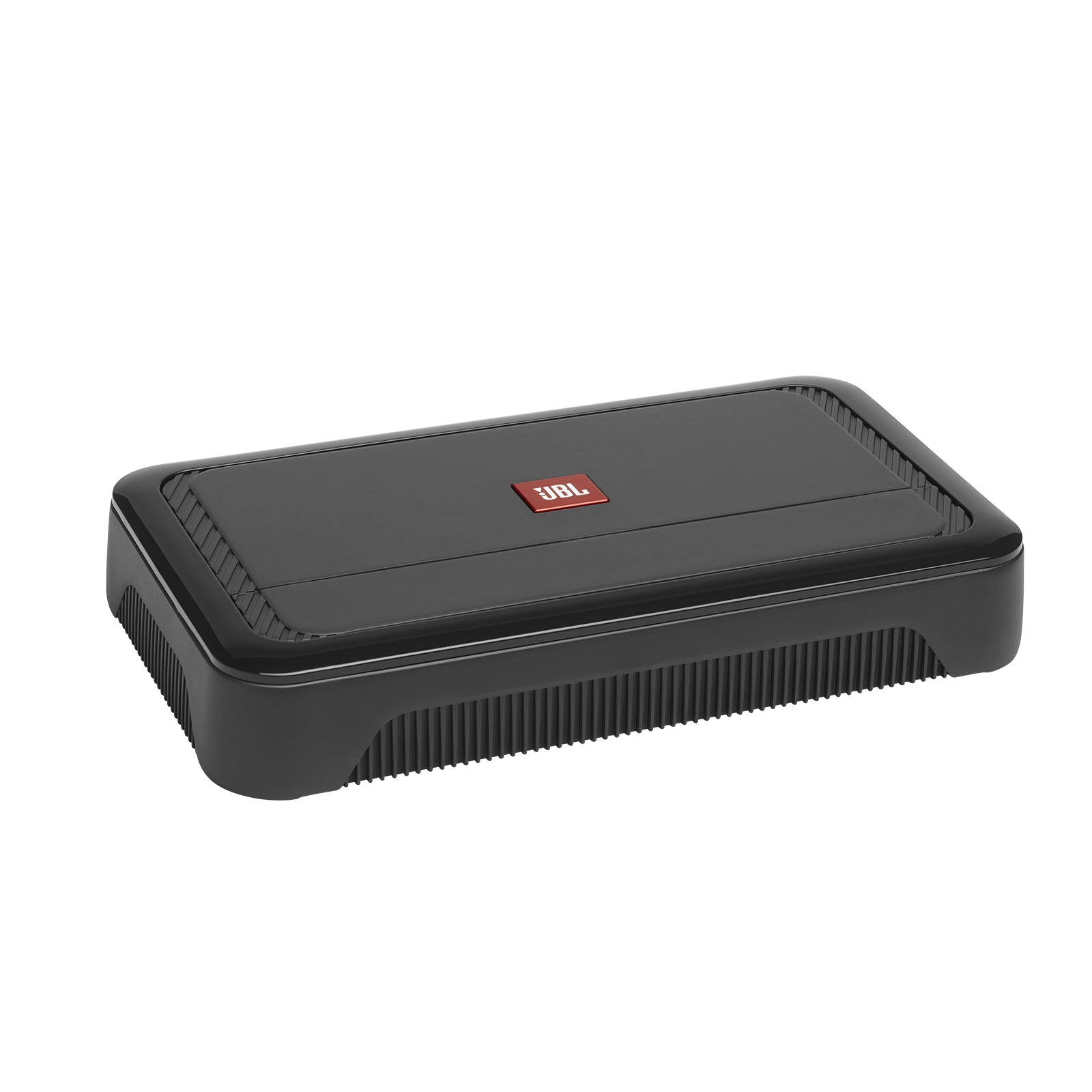

JBL Club A1000 Amp 1 Channel Mono Class D Subwoofer Amplifier 1000w RMS
Club A1000
Value engineered car amplifier with JBL power and performance
The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw.
Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio.
You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
Specification
Part Number: CLUB A1000
- 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms) 1000w RMS / 2000W MAX
- Class D amp technology
- frequency response 10-320 Hz
- variable low-pass filter (32-320 Hz, 12 dB/octave)
- variable bass boost (0-12dB at 45Hz)
- phase switch (0, 180 degrees)
- wired remote level control included
- preamp inputs and outputs
- speaker-level inputs (speaker wire-to-RCA adapters included)
- 4-gauge power and ground leads recommended — wiring and hardware not
- included with amplifier
- fuse rating 35A x 3
- WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8” x 2-1/16" x7-1/8”
What's Included
1 Year Warranty
- Club A1000 mono subwoofer car amplifier
- 35A ATO fuses (3 installed, 3 spare)
- Bare wire-to-RCA adapters
- Remote bass control module
- 16.5' Remote control cable (RJ-25 plugs on both ends)
- Self-tapping screws for remote (M3 x 15mm)
- Mounting screws (M4 x 53mm)
- JBL stickers
- Owner's manual
