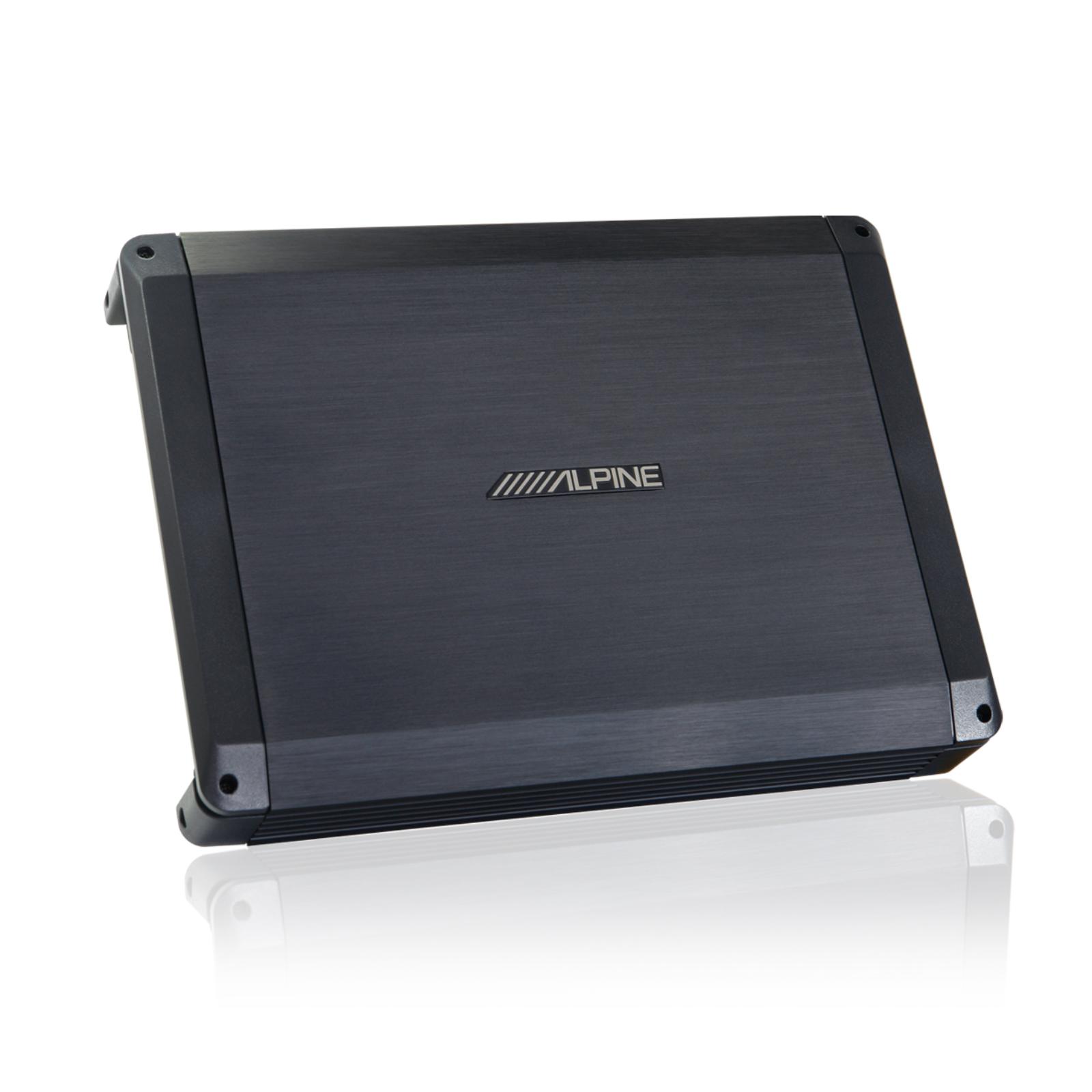

Alpine BBX-F1200 Amplifier 4 Channel Class AB Bridgeable Stereo Car Amp 280w RMS
Low stock
Superior sound performance at amazing prices 4 Channel Amplifier BBX-F1200
Designed for Europe
This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
- Amplifier Type: Class-A/B
- Channel Design: 4/3/2 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Current Protection: Over-Current, Over-Voltage and Thermal Protection

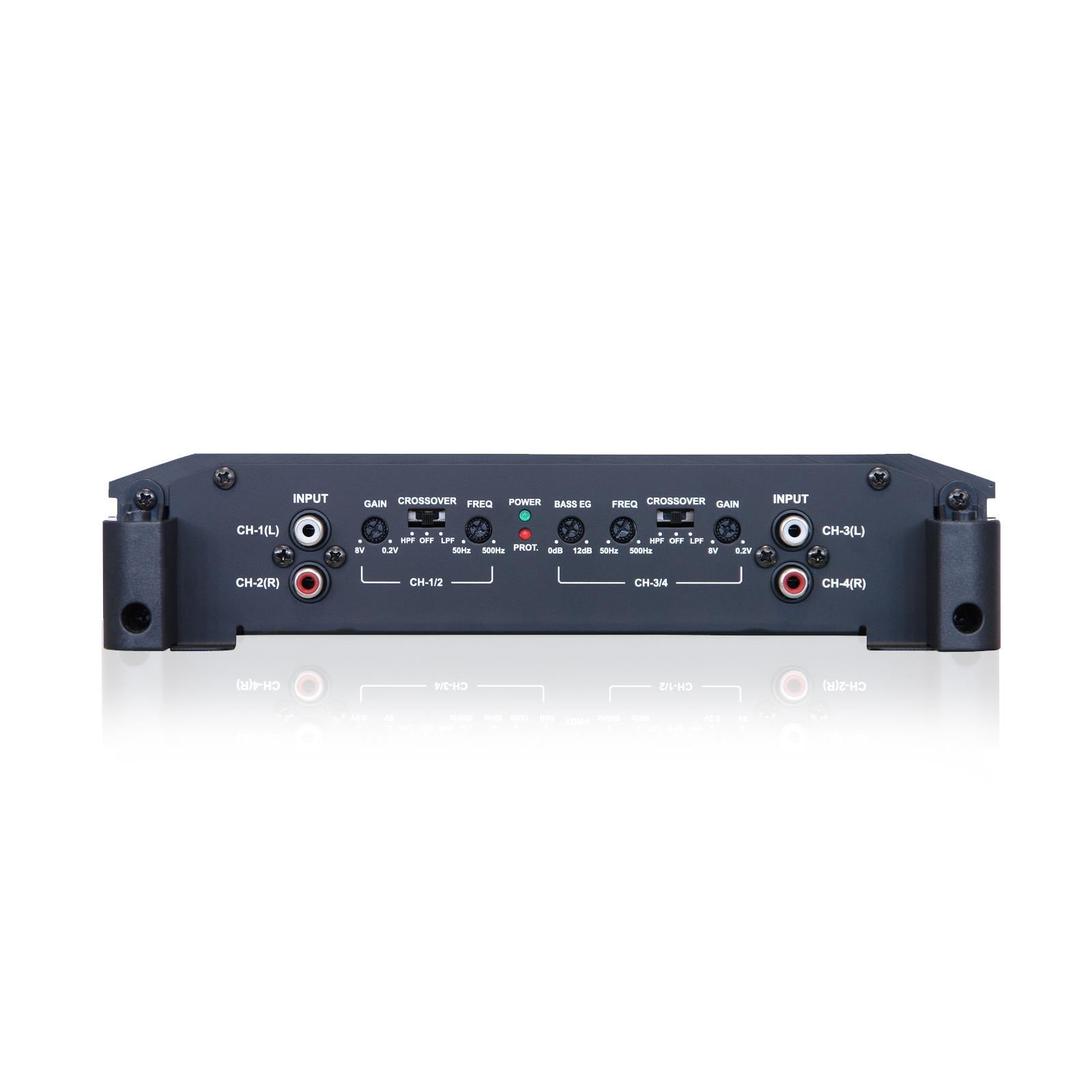

- Crossover: Variable Low-Pass / High-Pass
- Green/red status LED
- 2 pair RCA pre-inputs
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Specification
Part Number: BBX-F1200

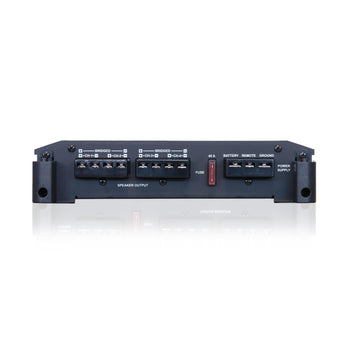

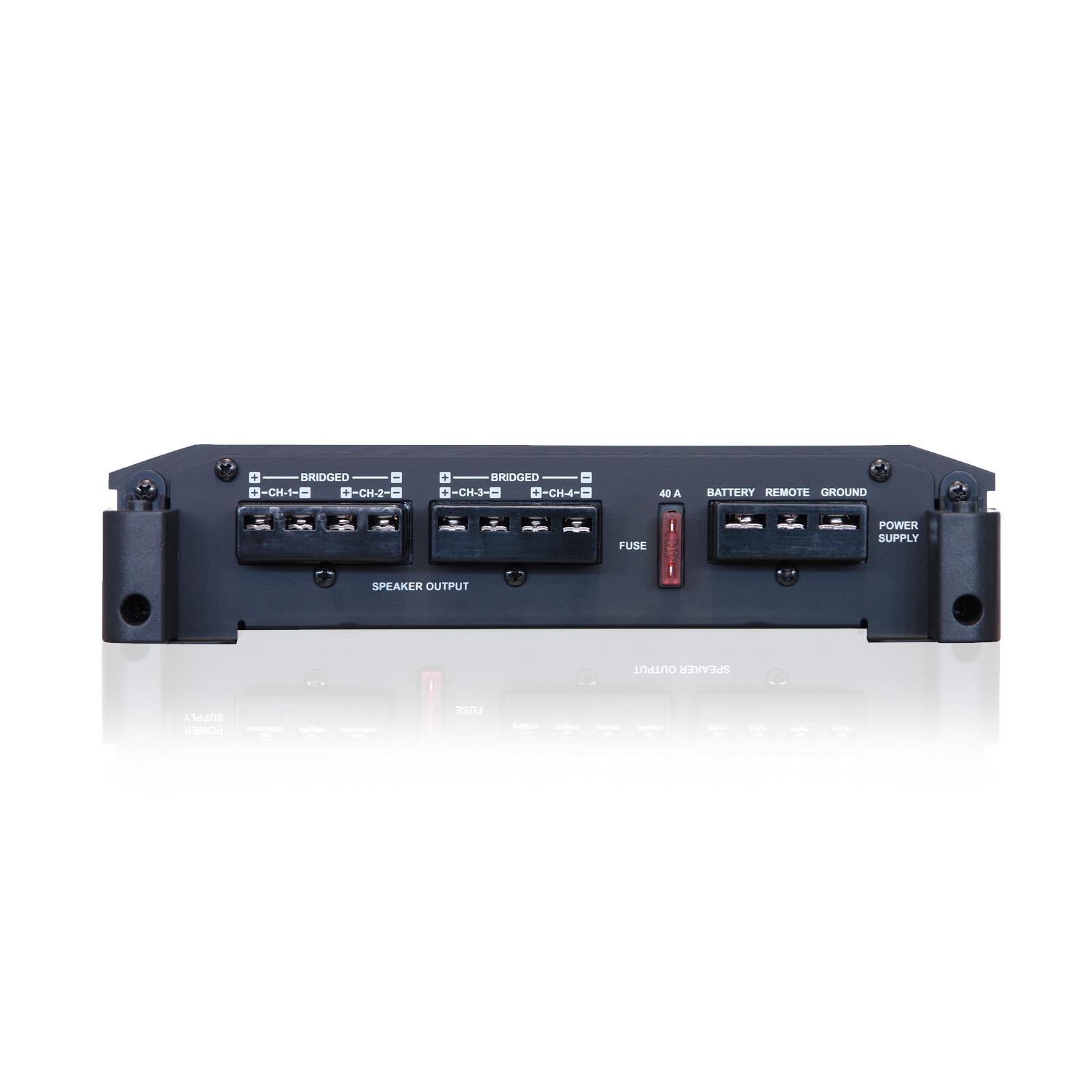

- Terminal Layout: Two-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
- Amplifier Type: Class-A/B
- Channel Design: 4/3/2 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Current Protection: Over-Current, Over-Voltage and Thermal Protection
- Crossover: Variable Low-Pass / High-Pass
- Green/red status LED
- 2 pair RCA pre-inputs
- Max Power Output Ratings
- Total Max Power: 600W
- RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N): 4 x 50W
- Per Channel into 2ohms (≤1%THD+N): 4 x 70W
- Bridged into 4ohms (≤1%THD+N): 2 x 130W
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch: LP/HP: 50Hz – 500Hz
- 3/4 Ch: LP/HP: 50Hz – 500Hz
- EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB (3/4 Ch only)
- Footprint: 330 mm x 52 mm x 240 mm
- Power Requirements: 14.4 V DC (11 V to 16 V)
- Input Sensitivity: 0.2 - 8.0 V
- Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance: 4 or 2 Ω
- Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight: 2.7 Kg
What's Included
2 Year Warranty
- Alpine BBX-F1200 Amplifier
